The stretch wrapping machine goes by many names. Pallet wrapper and stretch wrapper are just a couple. The machine comes with a turntable for easy loading. It is widely used to wrap large freight containers and pallets with stretch films, in order to prevent dust or moisture from entering in, thereby reducing product damages in transit. Typical features of our stretch wrapper are listed as follows.
1. After the wrapping process is completed, the turntable will automatically returns to its original position. This ensures the wrapped pallets get off the machine at the right location.
2. Slow startup and stop allow the pallet to be loaded and unloaded safely and avoid sudden drop.
3. Photocell for pallet height detection
4. Available with dual protection that ensures the safety of operators and equipment

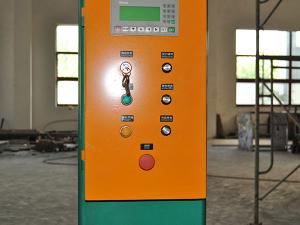

5. Photograph user interface plus PLC and variable frequency drive allows users to adjust the number of wrapping layers, wrapping times, and wrapping height.
6. Automatic film feed as well as stepless drive for film tension regulation gives the product maximum protection.
7. This stretch wrapping machine uses high stretchable plastic films for wrapping, which can be stretched up to 2.5 times the original length.
8. Top press unit and acceleration ramp are among the optional attachments for our stretch wrapping machine.
Customized pallet wrapping solution is also available upon your request.
Technical Specifications
1. Turntable Size: 1650mm
2. Turntable Height: 85mm
3. Turntable Area: 1200×1200mm
4. Maximum Packaging Height: 2000mm
5. Maximum Packaging Weight: 1000kg
6. Mast Height: 2500mm
7. Packing Height: 2300
8. Rotating Speed of Turntable: 0-13rounds/minute
9. Film Rising or Lowering Speed: 0-3m/min
10. Turntable Motor: 1 HP
11. Film Lifter Motor:1/2 HP
12. Machine Specifications: 2600mm × 1650mm × 2400mm
13. Power Source: 220V/50HZ
