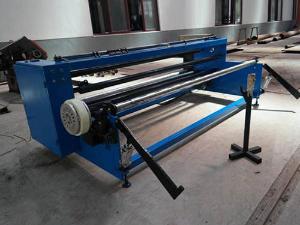

The HTS-N1600 is a slitter rewinder for nonwoven fabric. It is usually custom made according to its intended use, the variety of products to be slitted and rewound, and machine power.
With adjustable slit widths from 20mm to 1600mm, this slitting rewinding machine has many other advantages including high slitting speed, stable and convenient operation, and flat roll surface. It provides an ideal nonwoven fabrics converting solution.
Technical Specifications
1. Parent Roll Width: 1600mm
2. Maximum Diameter of Parent Roll: 500mm
3. Maximum Diameter of Finished Roll: 800mm
4. Minimum Slit Width: 20mm
5. Magnetic Particle Clutch for Tension Control
6. Main Motor Power: 3KW
7. Mobile Motor Power: 0.37KW
8. Variable Frequency Drive Power: 3.7KW
9. Slitting Speed: 0-300M (adjustable)
10. Upper and Lower Airshaft: 3"
