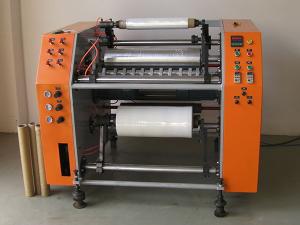

The HTR-P600 pre-stretch slitter rewinder is designed to take a parent roll of film, stretch it, relax it, cut it, and rewind it. With this pre-stretcher, the film can be pulled to obtain the required thickness with 1.3mm to the minimum. Different gear sets can be used to create various torques so as to meet the diversified needs for stretching.
By making small changes to it, this pre-stretch roll slitter can be used to produce coreless rolls. For more details, please refer to our user guide. Of course our pre-stretcher can be tailor made according to your specifications.
After receiving your purchase order, we will deliver the product within 20 working days. Before the prestretch slitter rewinder is packaged, customers can always come to our factory for acceptance check. Or we can shoot a video of the machine commissioning process and send it to you. Until you confirm the quality of your ordered item, we will not ship it out.
Technical Specifications
Film Width: 200-600mm
Maximum Diameter of Parent Roll: 400mm
Finished Roll Width: 50-500mm
Finished Roll Diameter: 300mm
Minimum Width for Slitting: 50mm
Maximum Slitting Speed: 600m/min
Diameter of Paper Tube for Parent Roll: 3inch
Diameter of Paper Tube for Finished Roll: 1.5inch, 2inch, or 3inch
Coreless Roll Airshaft Diameter: 3inch
Coreless Roll Diameter: 150mm
Maximum Processing Speed: 600m/min
Motor Power of Slitter Rewinder: 2.2kw
