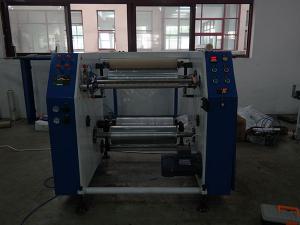

Semi-Automatic Coreless Film Rewinder

True to its name, the coreless film rewinder is a semi-automatic plastic film converting machine for winding small coreless rolls with a minimum diameter of 300mm. Whether coiling stretch films or cling films, our rewinding machine eliminates the need for paper tubes, which saves production cost and protects environment.

The PLC plus touch screen control system is easy to operate. All it takes is referring to the user guide. For customers who do not know how to handle the machine even after reading the user guide, we can send them a video which spoonfeeds them everything that needs to be understood.

Small changes can be made to the machine in order for it to produce cored rolls of stretch films and cling films. Prior to shipping, we would give the film rewinder a trial run. If necessary, we can shoot a video of the whole process and send it to the customer. After customer confirmation, we would put the machine in a fumigant-free wooden crate and ship it out.

Each rewinding machine is provided with a one-year warranty. For product under warranty, if you find any problems with the machine that arises from the act of God or other non-human factors, you can return the damaged parts. In that case, we would replace them for free, with no hidden charges including the shipping fee.

Technical Specifications
1. Motor Power: 2.2KW
2. Variable Frequency Drive
3. Rewinding Speed: 0~600m/min (adjustable)
4. Maximum Diameter of Parent Roll: 400mm
5. Maximum Diameter of Finished Roll: 300mm
6. Finished Roll Width: 200-500mm
7. Diameter of Paper Tube for Finished Roll: 30-76mm
8. Film Rewinder Dimension: L1350×W950×H1050mm
9. Net Weight: 650kg
